Communicate Creatively
with your customers using striking signs and vivid graphics, made with these flexible HD signage printing solutions.
SALE
Textile & Apparel printing | Sublimation printing

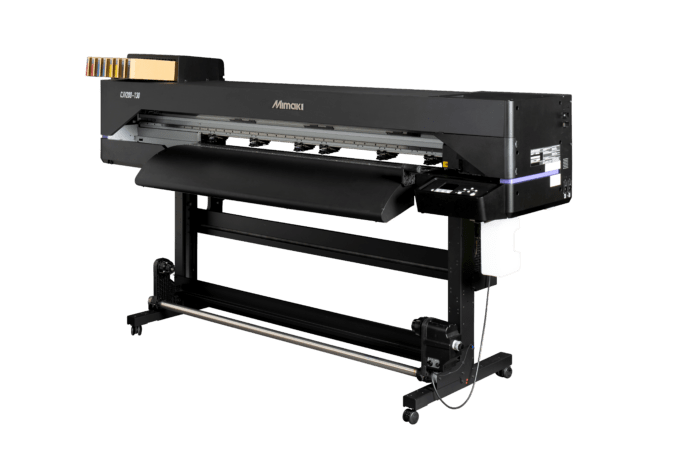

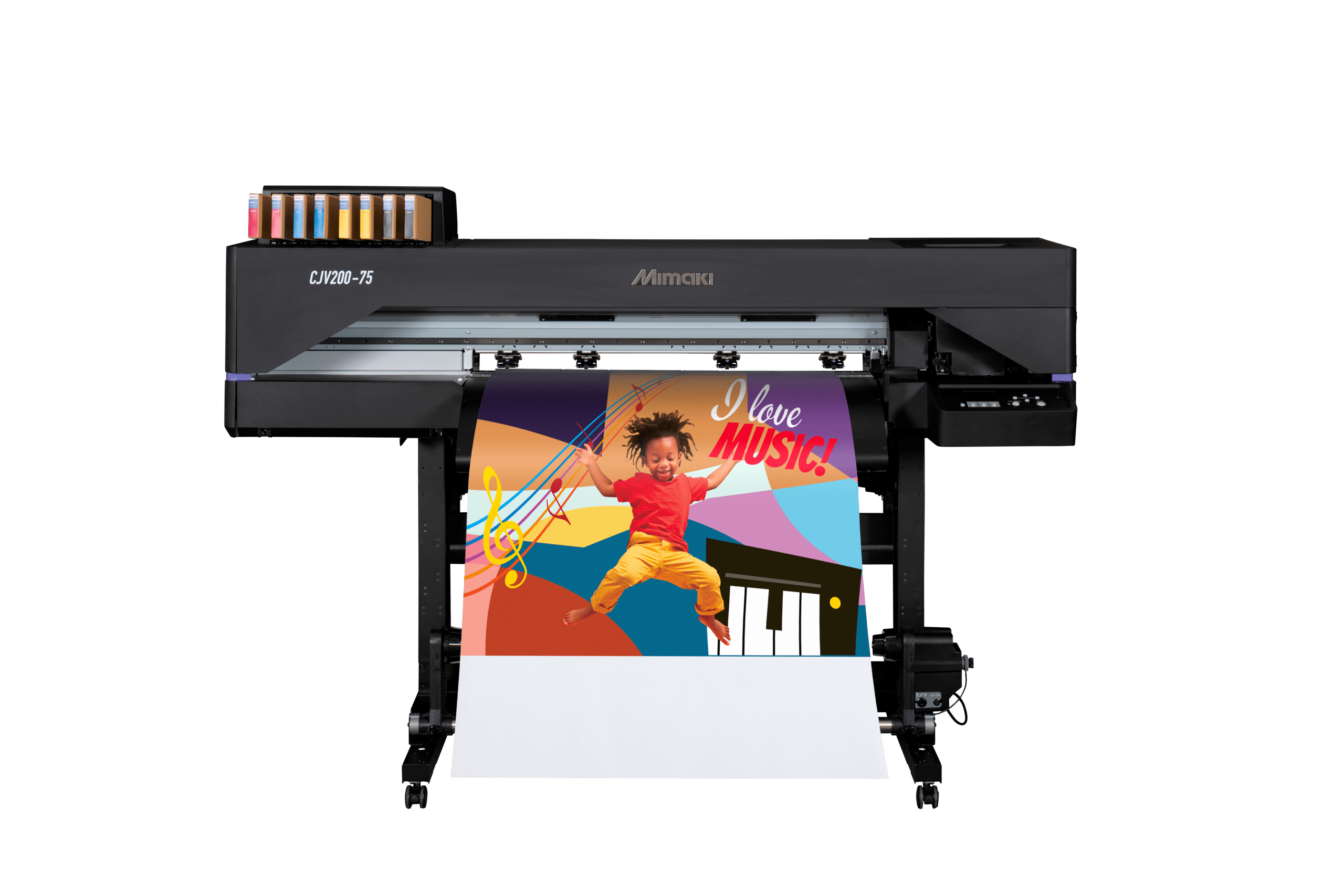

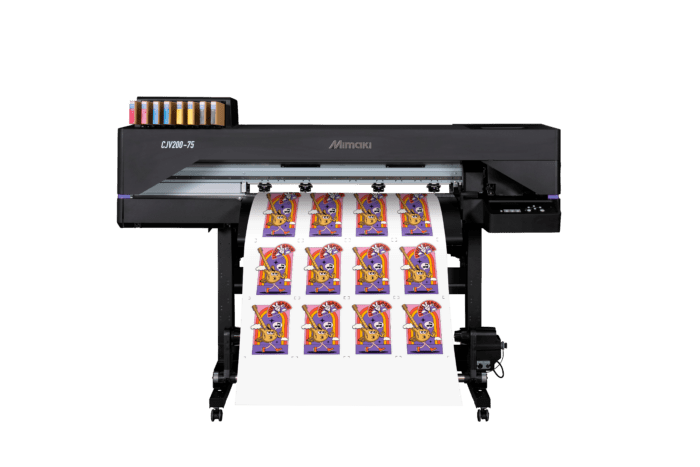

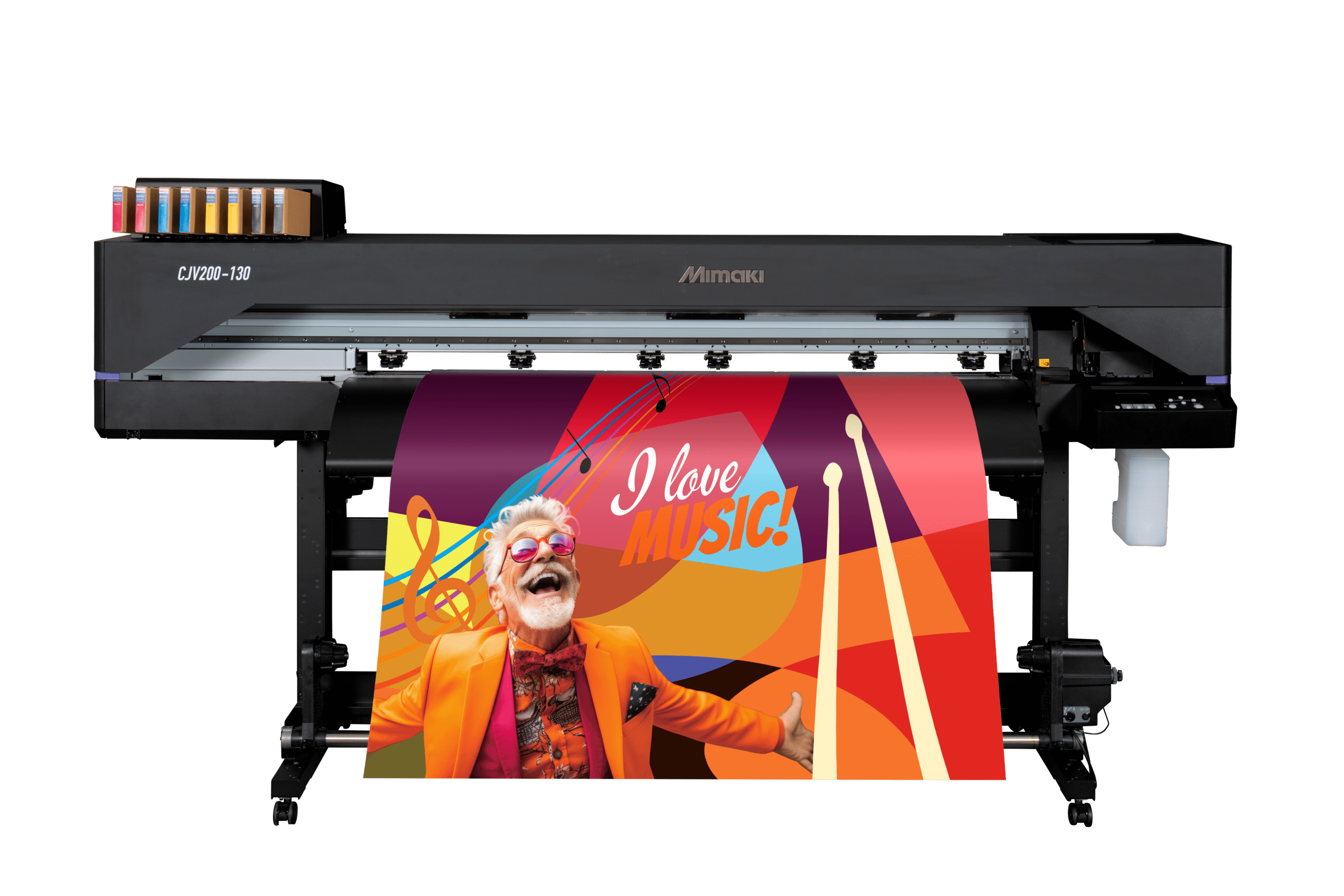

Mimaki CJV200 Series
Powered by the advanced ‘330 Engine’ technology
Powered by the advanced ‘330 Engine’ technology, the CJV200 features a single printhead that ensures precise control of ink droplets as small as 3pl. The 330 printhead produces high-density prints even at high speeds, consistently delivering outstanding results.
Description
Mimaki
CJV200
User-Friendly Features
Single Printhead
The single printhead system reduces cleaning and adjustment time. Its straightforward design lets you work more quickly and efficiently.
Wide-Opening Cover
Upward-Facing Control Panel
The single printhead system reduces cleaning and adjustment time. Its straightforward design lets you work more quickly and efficiently.
Wide-Opening Cover
Upward-Facing Control Panel
Dot Adjustment System (DAS)
An automatic feature for easy and precise media changes.
DAS automatically performs bi-directional print and media feed adjustments, ensuring easy media changes without human error.
Ink Saving Function
Save on ink consumption in just two clicks with user-friendly software.
Anyone can easily reduce ink consumption without technical expertise. The function is available for any substrate or profile.
Adjustable in 5 steps from level-1 to level-5:
Ink Saving OFF (Default)
Ink Saving Level 3 (Approx. 30% reduction)
Ink Saving Level 5 (Approx. 30% reduction)
Simple Design Software for Everyone
Simple Create is the original software for designing labels, stickers, and wobblers without the need for DTP (Design to Print) software. Combined with RasterLink7, it enables direct output of design data to the printer.
Note: RasterLink7 must be installed on the same computer.
Additional information
| Brand | |
|---|---|
| Model |
CJV200-160 ,CJV200-130 ,CJV200-75 |
About Mimaki
Established in 1975 in Japan, the Mimaki name has been synonymous with extraordinary quality world-wide, empowering businesses to “be innovative, work with confidence, stand out from the competition.”
Mimaki printers offers a range of printing solutions from printing and cutting machines to finishing equipment, software, and 3D printers.
Shipping & Delivery
Orders above R5 000.00 ex vat, Free delivery.
Orders placed before 9am within a 20km radius from GSW office, same day delivery, alternatively if further next day delivery.
Orders placed after 9am, delivery next day. Orders less than R5 000.00 ex vat, there is a R100.00 delivery charge.
Product Information
| Item | CJV200-160 | CJV200-130 | CJV200-75 |
|---|---|---|---|
| Printhead | On-demand piezo head | ||
| Print resolution | Y: 600, 900, 1200 dpi X: 600, 1200 dpi | ||
| Head gap | 2 levels by manual (1.5mm / 2.0mm) | ||
| Ink - Type | SS21, SS22, BS4 | ||
| Ink - Colour | 4 colour (C, M, Y, K) or 8 colour (C, M, Y, K, Lc, Lm, Lk, Or) | ||
| Ink - Capacity | SS21 / SS22: 440ml cartridge, 1L ink pack | BS4: 600ml ink pack, 2L ink pack | ||
| Ink circulation | Yes | ||
| Max. media width | 1620 mm | 1371 mm | 810 mm |
| Max. print width | 1610 mm | 1361 mm | 800 mm |
| Media roll outer diameter | φ 180 mm or less | ||
| Media roll weight | 25 kg or less | ||
| Media roll inside diameter | 2 / 3 inch | ||
| Cut function - Cut speed / acceleration | Speed: Max. 300 mm/s Acceleration: Max. 0.5G | ||
| Cut function - Cut pressure | 10 - 450 gf | ||
| Cut function - Cutter response times | 10 times / sec | ||
| Cut function - Cut accuracy | ±0.2 mm (Excluding expansion and contraction of film due to temperature) | ||
| Interface | Ethernet 1000 BASE-T (Recommended) / USB 2.0 Hi-speed | ||
| Power | AC (100~120V / 200~240V ±10%) ×2 50/60Hz ±1Hz | ||
| Power consumption | Max. 1320W ×2 / 4.5W or less (Sleep mode) | ||
| Operational environment - Temperature | 20 – 30 °C | ||
| Operational environment - Humidity | 35 - 65% Rh (Non condensing) | ||
| Guaranteed accuracy temperature | 20 - 25 °C | ||
| Dust level | Equivalent to general office | ||
| Dimensions (W×D×H) | 2,770 mm × 748 mm × 1,370 mm | 2,520 mm × 748 mm × 1,370 mm | 1,960 mm × 748 mm × 1,370 mm |
| Weight | 140 kg | 130 kg | 105 kg |
